Electrical equipment built to spec.
From low-voltage switchgear to medium-voltage substations, every product line is custom-engineered, fully factory-tested, and ready to energize on arrival.
Low Voltage Switchgear
Custom-engineered LV distribution and control
AK&J Electric's UL 891 listed low voltage switchgear is purpose-built for commercial, industrial, and mission-critical applications where reliability and safety are non-negotiable. Each lineup is designed around your one-line diagram and fault study.
- System voltage
- Up to 1,000V AC
- Bus ampacity
- Up to 5,000A
- Interrupting rating
- Up to 80kA
- Configuration
- Fixed, drawout, or hybrid

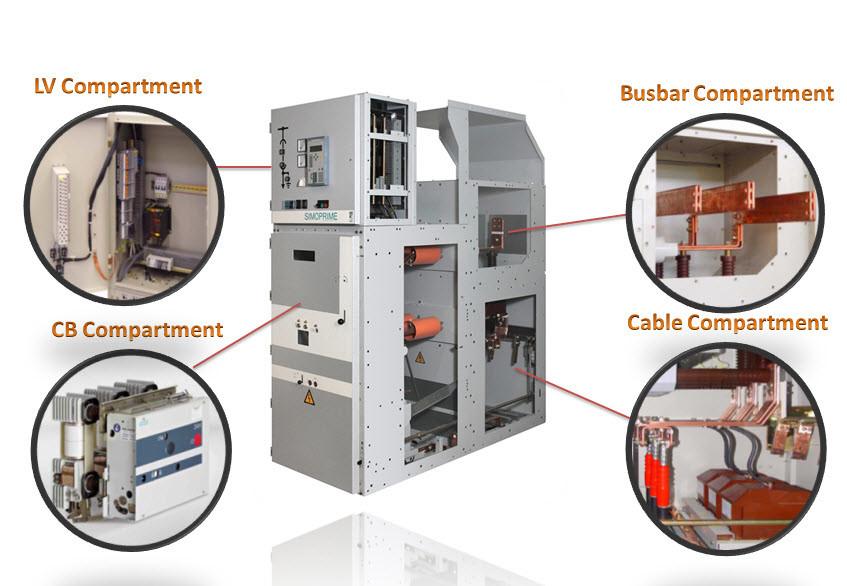

Medium Voltage Switchgear
Metal-clad construction, SCADA-ready
Metal-clad medium voltage switchgear with vacuum circuit breakers, microprocessor-based protective relays, and integrated SCADA communications. Built for utility substations, industrial plants, and large commercial facilities.
- System voltage
- 1kV – 38kV
- Bus ampacity
- Up to 4,000A
- Interrupting rating
- Up to 50kA
- Construction
- Metal-clad per IEEE C37.20.2

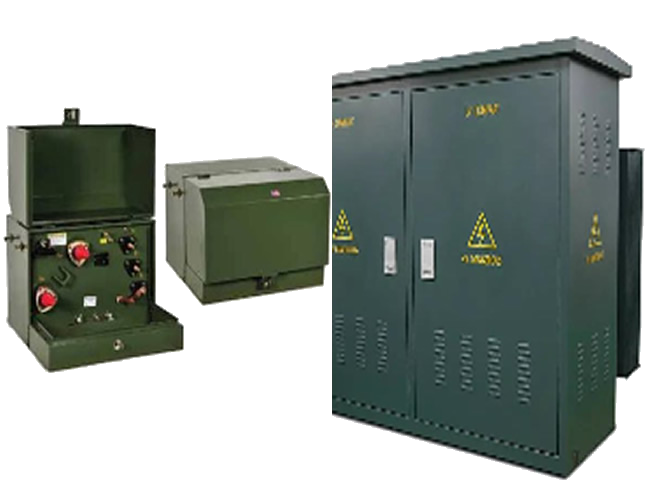

Transformers
Pole, pad-mounted, and compact substations
Distribution and power transformers built to ANSI/IEEE C57 standards. Standard and custom configurations for utilities, renewables, EV infrastructure, and industrial loads.
- Type
- Pole, pad-mounted, dry-type, compact sub
- kVA range
- 15 kVA – 5,000 kVA
- Primary voltage
- Up to 35kV
- Cooling
- ONAN, ONAF, KNAN options
Control Panels
MCC, PLC, and process control
Custom industrial control panels for motor control, process automation, and BMS integration. Built to NEC and project specifications, factory-wired, programmed, and tested before shipment.
- Enclosure
- NEMA 1, 3R, 4, 4X, 12
- Design basis
- Built to NEC and project specifications
- Programming
- PLC integration on request
- Testing
- 100% factory-wired and FAT'd
Feeder Pillars
Outdoor LV distribution
Weatherproof outdoor distribution pillars for utility, EV charging depot, and commercial street-side distribution. Tamper-resistant, painted to spec.
- Rating
- NEMA 1/3/3R/4X
- Construction
- Stainless or coated steel
- Configuration
- Fully customizable
- Use
- Street, depot, and utility distribution
Accessories
Surge arrestors, breakers, relays, junctions, and cable kits
Complete catalog of system protection and cable accessories — surge arrestors, LV & MV circuit breakers, protective relays, junction boxes for cable terminations, and termination kits for XLPE, EPR, and PILC systems.

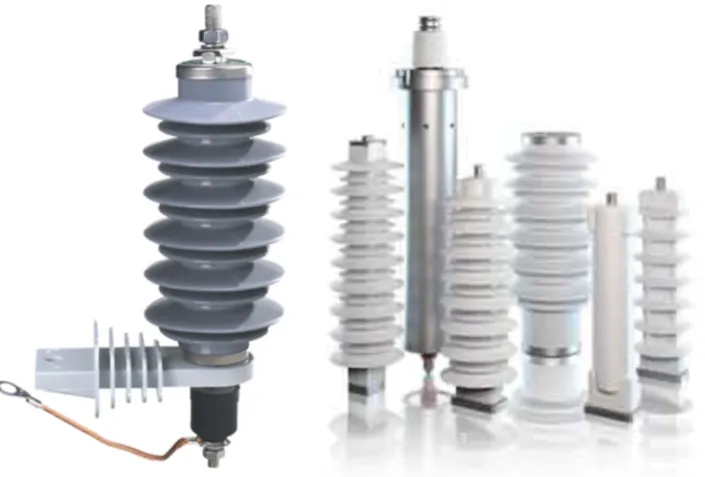

- Surge arrestors
- 0.65kV – 40kV MCOV
- Circuit breakers
- LV & MV — vacuum / air / molded-case
- Protective relays
- SEL, GE, and Schneider
- Cable terminations
- Heat-shrink and cold-shrink up to 36kV
EV Charging Substations
Integrated power distribution for EV charging sites
Coordinated service entrance, switchgear, transformer, distribution, and metering packages for fleet depots, public charging hubs, and utility-connected EV sites.
- Applications
- Fleet depots, transit, public DCFC hubs
- Configuration
- Indoor, outdoor, skid or pad-mounted
- Integration
- MV/LV distribution, transformers, metering
- Communications
- Modbus TCP / BACnet
